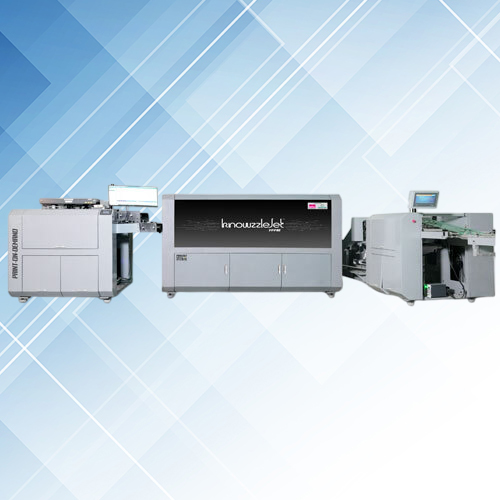

Send InquiryM-440 Inkjet Web Press Machine
MOQ : 1 Piece
M-440 Inkjet Web Press Machine Specification
- Type
- Inkjet Web Press
- Material
- High-grade Industrial Steel
- Printing Speed
- Up to 120 meters/min m/m
- Computerized
- Yes
- Automatic Grade
- Automatic
- Plate Type
- No Plate Required (Plate-less Digital)
- Print Direction
- Bidirectional
- Ink Type
- Pigment-Based Ink
- Color Management
- CMYK, Custom ICC Profiles
- Working Temperature
- 10C - 35C Celsius (oC)
- Power
- 380V / 50Hz, Three-phase Volt (v)
- Size
- Large-format Industrial
- Width
- Up to 440mm Web Millimeter (mm)
- Weight (kg)
- Approx. 2200 kg Kilograms (kg)
- Dimension (L*W*H)
- 4100mm x 2100mm x 2300mm Millimeter (mm)
- Feeding System
- Automatic Web Feeder
- Software Support
- Windows and Mac OS Compatible RIP
- Resolution
- Up to 1200 dpi
- Output System
- Automatic Rewinder/Stacker
- Network Connectivity
- Ethernet, USB 3.0
- Noise Level
- <70 dB
- Safety Features
- Emergency Stop, Overheat Protection, Safety Cover Switch
- Print Head Technology
- Precision Multi-nozzle Piezo Technology
- Drying System
- Integrated Hot Air & IR Dryer
- Media Compatibility
- Standard Paper, Glossy, Matte, Cards
M-440 Inkjet Web Press Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 10 Pieces Per Month
- Delivery Time
- 7 Days
About M-440 Inkjet Web Press Machine
Technical Specifications
|
Model |
knowzzleJet M440 |
|
Inkjet Print Head Type |
Memjet Duralink Inkjet Printhead Technology |
|
Print width |
Up to 430 mm (17 Inch) Simplex |
|
Print Resolution (s) |
1600X1600 dpi, 1600X954 dpi, 1600 X 790 dpi, 1600x580 dpi |
|
Drop Size |
2.1 pL |
|
Max. Rated Speed |
Up to 120 m/min |
|
Print Head Control Mechanism |
Automatic capping, cleaning, and positioning |
|
Ink Type |
Water Based - Pigment |
|
Color(s) |
Black - Monochrome |
|
Data Type |
PDF printing Capability in Simplex mode |
|
Electrical Requirements |
Standard configuration - 220V-240 V (Single Phase), 50 Hz, 63 Amps through UPS To be discussed for final configuration at the time of ordering |
Specifications of Substrate Transport System
-
Web width: up to 460 mm
-
Print width: As per the Inkjet Printing system option selected
-
Roll Un-winder with servo driven Brake / Web Tension system
-
Print Section with Infeed /- outfeed Servo Drives
-
Space for Dual print stations for Simplex printing
-
Cutting device: Motorized variable sheet cutting system, servo driven
-
Cut off range: 200mm - 600 mm as required
-
Touch screen HMI console on machine
-
Approx. Machine dimensions: Approx 8.5 Meter x 2.5 Meter
-
Minimum Working Space Requirement:11.0 Meter x 6.0 Meter
-
Weight: 4.5 tons (Approx.)
-
Power requirement: 415 V / 3 phase / 50 Hz (25KW)
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Inkjet Digital Web Printing Machine Category

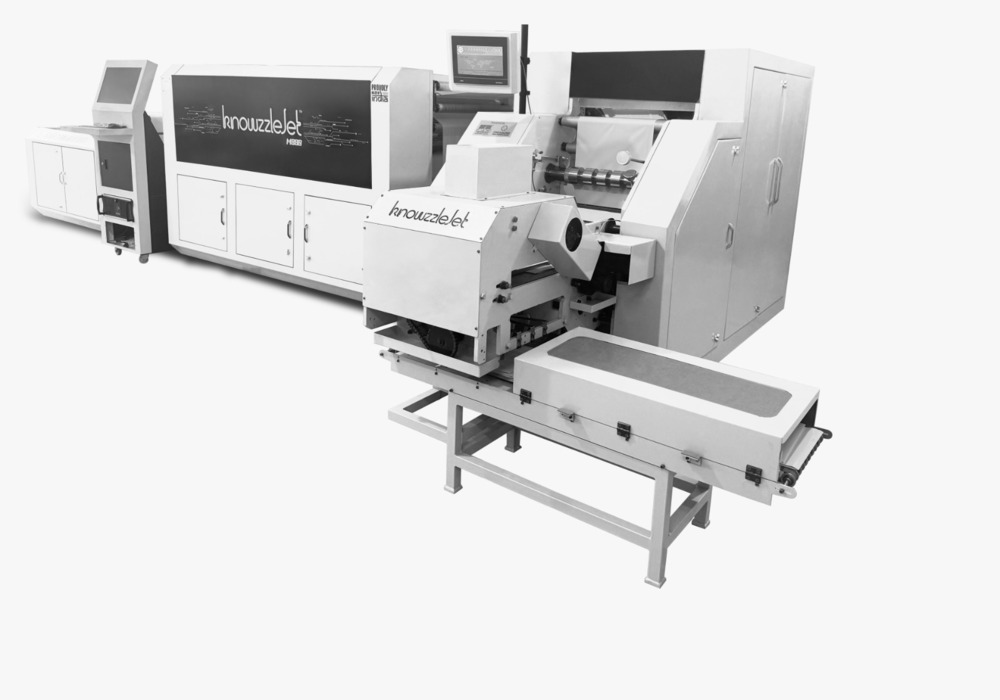

M-880 (Fixed Cut) Inkjet Web Press Machine
Minimum Order Quantity : 1 Piece
Automatic Grade : Automatic
Computerized : Yes
Ink Type : Other, Waterbased or UV Ink
Size : Large Format
Material : Highgrade steel and industrial alloys
M-660 Inkjet Web Press
Automatic Grade : Automatic
Computerized : Yes
Ink Type : Other, Waterbased Pigment Ink
Size : Large Format
Material : Heavyduty Steel Frame, Industrial Grade Components

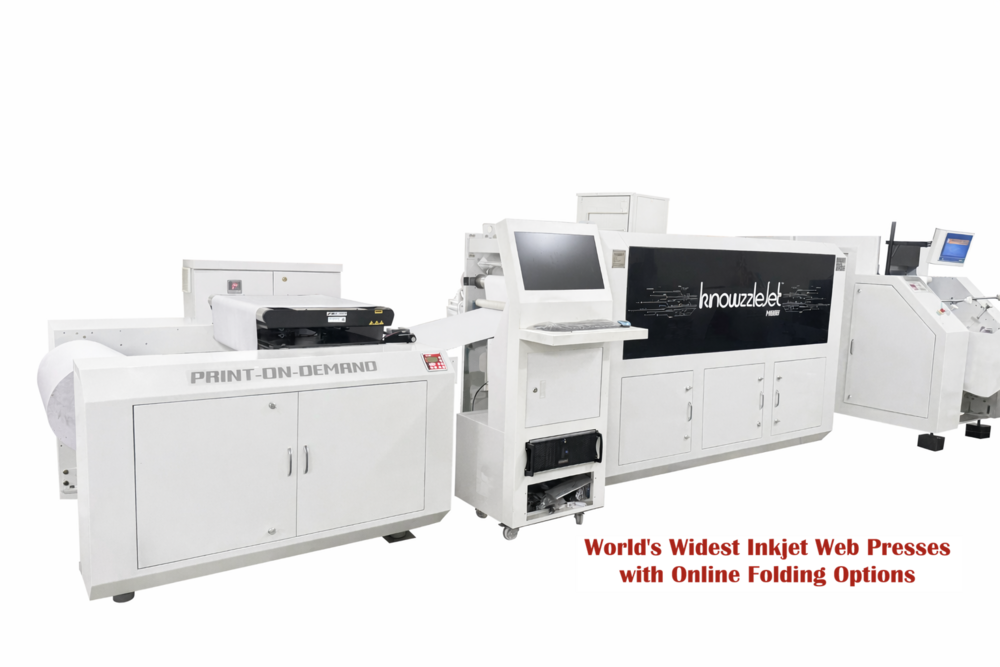

M-880 (Variable Cut) Inkjet Web Press Machine
